How do you tell the difference between an oil-lubricated and an oil-free air compressor?

To determine whether an air compressor is oil-lubricated or oil-free, you should not rely solely on its external cleanliness or the presence of an oily smell in the exhaust. Instead, cross-check using the nameplate markings, the lubrication system design, maintenance components, and operational characteristics; this approach significantly reduces the risk of misidentification.

1. First, check the nameplate and accompanying documentation.

Nameplates and instruction manuals usually provide the most direct clues. If you see terms such as “oil-free,” “oil-less,” or “无油” (wúyóu), it generally indicates that the compressor’s main chamber does not rely on lubricating oil for sealing or lubrication. Conversely, if you encounter phrases like “oil-injected,” “lubricated,” or specific references to the lubricant grade and fill quantity, the unit is typically an oil-lubricated model. However, the nameplate should only serve as a preliminary indicator and cannot be used as the sole definitive basis. Some equipment may merely state that the air path has undergone oil-free treatment, which does not necessarily mean the main unit is entirely oil-free; further examination of the internal structure is required.

II. Observe the host and piping structure.

In oil-lubricated compressors, a relatively complete oil circuit is usually visible around the compressor head. For example, screw compressors with oil injection typically include an oil–gas separator tank, an oil filter, an oil cooler, and an oil-level sight glass; reciprocating compressors with oil injection have a crankcase, an oil dipstick, or an oil window. If you can see an oil-fill port and a drain port on-site, that also indicates the unit requires lubricating oil to operate.

In oil-free compressors, there is no lubrication circuit within the compression chamber of the compressor head; therefore, you generally won’t see an oil–gas separator tank or an oil–gas separation element. Common oil-free designs include oil-free reciprocating compressors, oil-free screw compressors, scroll compressors, and centrifugal compressors. These units may still have cooling fans, water-cooling piping, or lubrication points for bearings and gears. The presence of a few grease fittings does not necessarily mean the equipment is an oil-lubricated compressor; the key is whether those lubrication points are in direct contact with the compression chamber.

III. Inspect the exhaust and condensate characteristics.

In oil-lubricated compressors, the exhaust may contain trace amounts of lubricating oil during operation. After prolonged use, oil droplets may be visible in the condensate drained from the air receiver tank, and an oily film may also form on the inner walls of the piping. In oil-free compressors, the compression chamber does not generate oil because the compressor unit is not lubricated; therefore, any oil in the exhaust typically originates from the ambient air or from downstream treatment equipment.

It is important to note that the absence of oil droplets in the drain does not necessarily confirm that the system is oil-free, nor should the presence of even a thin oily film be taken as definitive proof of oil contamination. Ambient air may contain oil vapor, and residual oil from piston rings, seals, or pipeline installation can also affect the assessment. For processes with stringent requirements regarding oil content, actual measurements or the manufacturer’s technical specifications should be relied upon rather than visual inspection alone.

4. Judging based on maintenance points and consumables

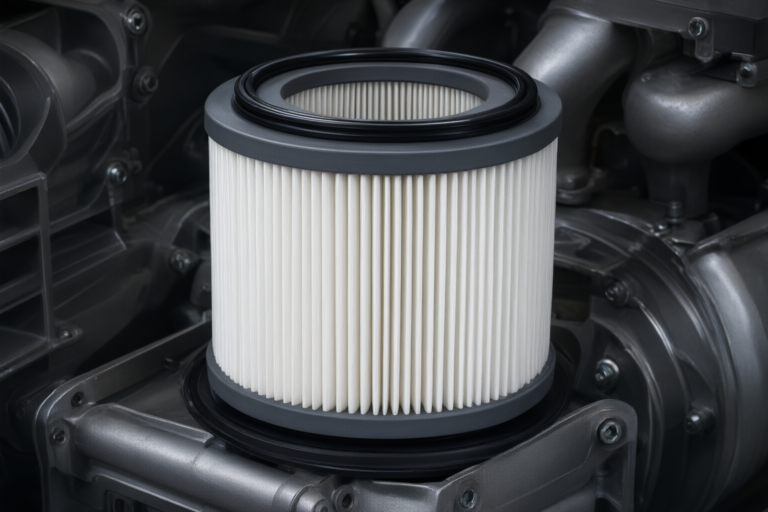

Regular maintenance for oil-lubricated compressors typically includes replacing the lubricating oil, oil filter, and oil–gas separator element; common spare parts on site often include oil filters, separator elements, or dedicated lubricating oils. Oil-free compressors do not have these oil‑related consumables, but they still require air filter replacement, and some models also need bearing and gearbox lubrication or coolant replacement—so they should not be regarded as “maintenance‑free.”

If the equipment documentation explicitly lists the lubricant replacement interval and oil specifications, it can generally be determined to be an oil‑lubricated model. If the documentation emphasizes that the compression chamber is oil‑free yet still specifies coolant or grease maintenance, it is necessary to determine whether any fluids enter the compression chamber.

V. Several Commonly Confused Situations

• No oil does not mean the exhaust is completely free of oil:“Oil-free” typically means that the compression chamber does not come into contact with lubricating oil, but the air source and downstream treatment systems may still introduce oil contaminants.
• A clean appearance does not mean it’s oil-free:Even an oil-lubricated air compressor can remain clean on the outside if properly maintained; conversely, an oil-free compressor may still become stained with oil due to leaks from nearby equipment.
• Having an oil-burning engine does not necessarily mean that the exhaust is heavily contaminated with oil:After oil–gas separation and filtration, the oil content in the exhaust air is reduced; however, the extent of this reduction depends on the equipment configuration and maintenance condition, so conclusions cannot be drawn solely based on the model.
• Water cooling does not equal oil-free:Water cooling is simply a cooling method; both oil-lubricated and oil-free compressor models can use water cooling.

VI. Steps for Practical Judgment

1. First, examine the nameplate and the instruction manual, and note the model number as well as keywords such as “oil-free” and “oil-injected.”
2. Also check whether the unit is equipped with an oil–gas separator tank, an oil filter, an oil level sight glass, or a filling port.
3. Check the maintenance manual to see whether it requires regular replacement of the compressor oil and the oil separator element.
4. Inspect the gas storage tank drain and the inner walls of the pipelines for the presence of a stable oil film as an auxiliary clue.
5. If confirmation is still not possible, contact the manufacturer or a qualified technician and verify based on the model number and structural diagram; do not rely solely on visual appearance.

When determining whether an air compressor is oil-lubricated or oil-free, the nameplate, lubrication design, and maintenance documentation should be given priority. The smell of the exhaust, the presence of oil in the drain water, and the equipment’s appearance should only serve as secondary indicators. If the equipment is used in applications—such as food processing, pharmaceuticals, or spray painting—that are highly sensitive to compressed-air quality, it is also necessary to verify that downstream filtration, drying, and oil-content testing meet the process requirements, rather than simply settling for a binary distinction between “oil-lubricated” and “oil-free.”
